NOTE: Not to scale, but closely illustrates the relative differences between the sensors.

DSLRs and compact Point & Shoot digital cameras

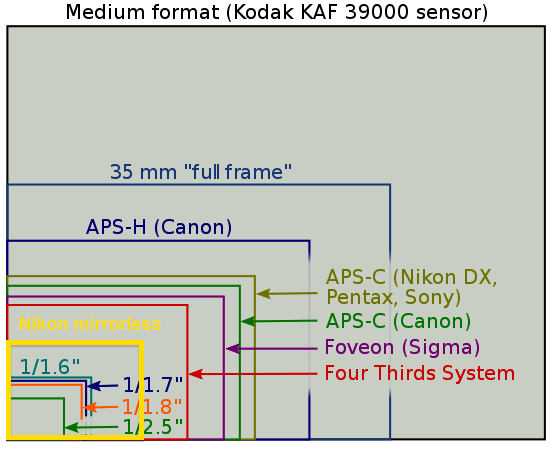

This illustrates the comparative image size as the different digital camera sensors see it, based on their relative size. It does not take much imagination to understand how important these differences are. Simply put, the smaller the sensor, the smaller the area across which the image is spread. The benefits of a larger image size should be intuitively clear. To get an enlargement, you would have to increase the smaller image much more than the largest one, and that translates into a loss of some fine detail.

The new micro 4/3 compact digital camera system

Four-Thirds Format

Sigma introduced a new concept that has been taken up by other companies, such as Olympus, Panasonic, and now Leica with the X1. This is referred to as the 4/3 format or system, and it seems to be getting some traction in the market. Sigma decided to build a compact camera with a large sensor, about equal in size to the Prosumer/Amateur DSLR sensor. The origial film Leica may have inspired that thought. It was always a small 35mm range-finder system that weighs a fraction of that of larger SLRs or DSLRs. The digital four-thirds cameras have no optical view finder, but expect the LCD on the back to be the sole viewing element for the photographer. The result is a compact camera without mirror or prism to facilitate an optical viewfinder, permitting smaller lenses, but with a large and high quality sensor. You can carry the whole system in a small bag or even in your pockets, as Kevin Spacey demonstrates here in the amusing video for the Olympus Pen (4/3).

Note: because of the sensor size, which is a little smaller than DX, you will have to double the focal legth of the micro 4/3 lenses (e.g. a 20 mm lens is actually the equivalent of a near-normal 40mm lens and so on).
